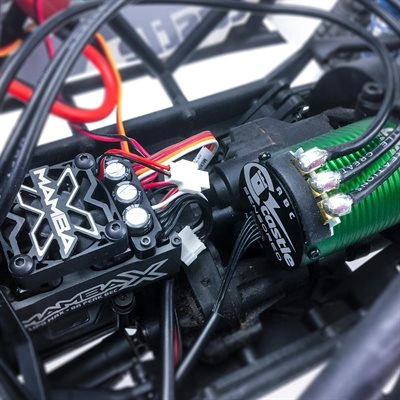

This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC, and the 1406 4600Kv Sensored Brushless Motor. NOT for use in 4WD short course trucks. For 2WD short course trucks on 2S LiPos geared conservatively, 1/10 scale 2WD stadium trucks and buggies on 2S for bashing and limited runs on 3S LiPos with conservative gearing, also ideal for 1/10 scale on road cars running on 2S and 3S LiPo power.
FEATURES:
ESC; 2S - 6S input voltage range Compatible with 1/10 - 1/8 scale vehicles weighing less than 9lbs (4kg), including many extreme 1/10 scale setups and 1/8 scale race buggies Smartsense uses motor's sensors for smooth starts, excellent torque and low-speed drivability - then transitions to the sensorless mode with electronic timing, Smartsense automatically advances timing for peak performance during all driving conditions On-the-fly adjustments can be made through the AUX wire once enabled in Castle Link, then settings can be tuned from transmitter while driving Recordable real-time data such as RPM, battery current and voltage, ESC and motor temperature, throttle input and more Audible alerts CNC aluminum case 12AWG high strand count silicone insulated battery wires One year limited warranty through Castle Creations beginning at date of purchase Motor; High-strength neodymium sintered magnet with Kevlar wrap High-performance 0.2mm steel lamination stacked stator Castle 13 AWG silicone insulated wire leads Oversized NMB bearings Four pole configuration for maximum efficiency at high RPM CNC machined 6061-T6 aluminum front and rear endbells product Item: 010-0155-01 / 010015501 INCLUDES:

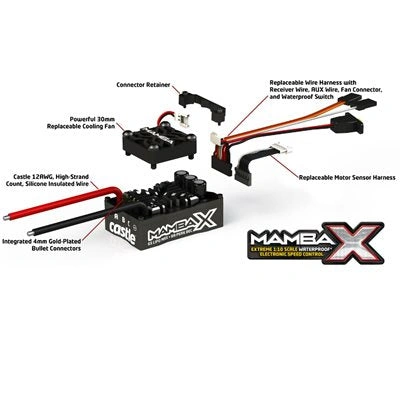

Mamba X Extreme 1/10 scale Electronic Speed Control Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector, and Waterproof Switch Replaceable Motor Sensor Harness 12AWG Battery Wires Cooling Fan 4mm Gold Plated Bullet Motor Connectors 1406 4600Kv Sensored Brushless Motor Sensor Wire SPECS:
ESC (CSEM9500); Input Voltage Range: 2S - 6S LiPo BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V Programmable: Fully programmable with Castle Link USB Adapter, and downloadable Casle Link Windows software Telemetry Link Capable: Yes Brake: Proportional Reverse: Yes, may be disabled for racing Cooling Fan: 1.2' (30mm) removable Dimensions: 2.14 x 1.39 x 1.18' (54.4 x 35.2 x 30mm) Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to run Motor (CSEC5600); Input Voltage Range: 2-3S LiPo Kv: 4600 Max. RPM: 100,000 Max. Recommended Vehicle Weight: 5lbs (2278g) with battery RTR Length: 1.9' (49.5mm) Diameter: 1.4' (36mm) Weight with Wires: 6.9oz (197g) Shaft Diameter: 1/8' (3.17mm) Shaft Length: 0.59' (15mm) Mounting Hole Specifications: M3 @ 25mm Connectors: 4mm Male Castle Bullet COMMENTS:
Waterproof under normal operation. Not intended for operation when completely submerged in water.
