Details:

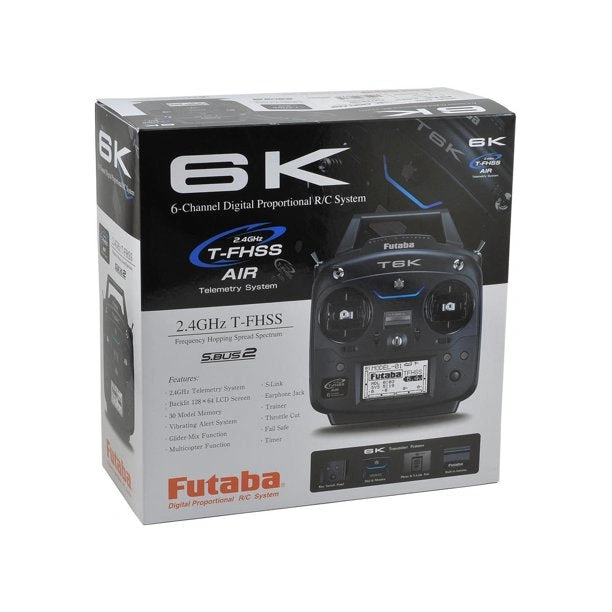

This is the Futaba 2.4GHz 6K Air Radio System with the R3006SB T-FHSS SBUS, SBUS2 Receiver. (Servos and Sensors Not Included.) This is the airplane version which will default to airplane settings when powered up and has a ratcheted throttle stick.
Futaba 6K Air 2.4GHz for taking flight into the RC flying world.
FEATURES:
- Telemetry system (T-FHSS) provides data on receiver battery voltage, external voltage, temperature, RPM, altitude and variometer (sensors not included and must be purchased separately, See COMMENTS below)
- S.Bus/S.Bus2 servo setting functions programmable through transmitter
- R3006SB receiver can use SBus as the main link/communication to servos, or a combination of SBus and conventional outputs together
- Programmable mixing for airplanes, helicopters, gliders and multi- rotors
- Four assignable switches, three 3-position and one 2-position
- Switch/VR position change and AUX channel function change
- Updateable software through the Futaba CIU-2 USB PC Interface not included, order (FUTM0951)
- Programmable mixing (3-Normal, 1-Curve)
- Wing Type (5-Wing, 2-Tail)
- Throttle Cut V-Tail
- Dual Rate/Expo Camber
- Throttle Curve Air Brake
- Idle Down Gyro
- Aileron Differential Elevon Mixing
- Elevator to Flap/Flap to Elevator Mixing
- Transmitter also compatible with S-FHSS receivers
- 30 model memory, model naming up to 8 characters
- Auxiliary channel
- Parameter functions
- Servo monitor/test
- Throttle position warning
- Wireless model data transfer
- Timer-system & model (Up/Down)
- Trainer system (trainer cord required)
- Fail safe
- End points
- One year limited warranty through the Futaba Service Center beginning at date of purchase
INCLUDES:
Futaba 2.4GHz 6K Transmitter R3006SB Receiver, FUTL7683 Switch Harness
REQUIRES:
AA Batteries: Four for transmitter Sensors and Servos of modeler's choice
SPECS:
Transmitter; Transmitting Frequency: 2.4GHz band System: T-FHSS Air, S-FHSS switchable Power Supply: Four AA batteries Receiver; Power Requirement: 4.8V~7.4V battery or regulated output from ESC Size: 1.7 x 0.98 x 0.35 ' (43.1 x 25.0 x 8.8 mm) Weight: 0.3 oz. (8.5g) Battery: F/S Voltage
COMMENTS:
The following Futaba sensors are available; SBS-01T Temp Sensor, FUTM0854 SBS-01TE EP Temp Sensor, FUTM0856 SBS-01A Altitude Sensor, FUTM0851 SBS-01RM Magnet Type RPM Sensor, FUTM0852 SBS-01RO Optic RPM Sensor, FUTM0853 SBS-01RB Brushless Motor RPM Sensor, FUTM0857
